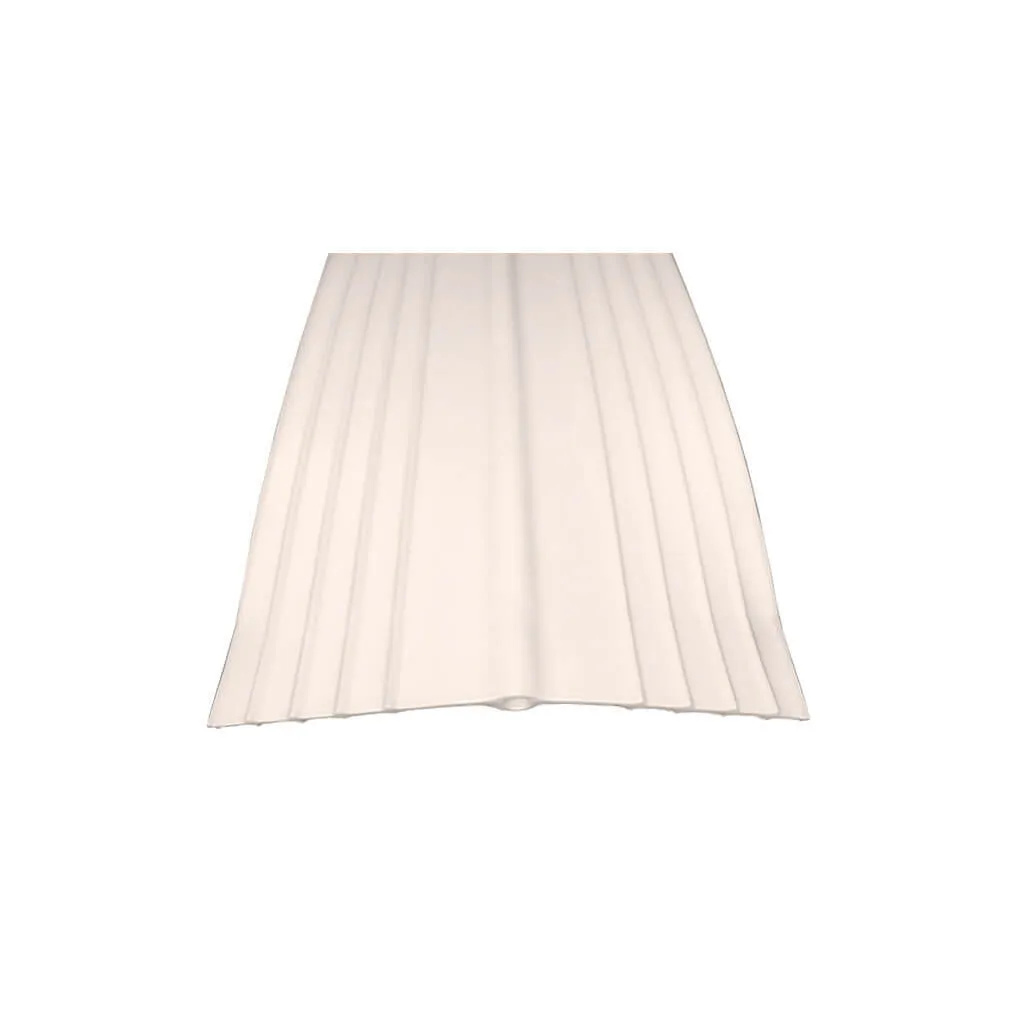

BoMetals RCB-6316 6 in. x 50 ft. Ribbed Center Bulb PVC Waterstop is used in expansion joints where normal movement between members is anticipated. It can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water and Wastewater Treatment Plants, and other liquid retaining structures.
Features
- Good tensile strength and waterproof capability
- Tear resistance
- Not affected by weather, low temperature
- Flexible, and durability
- Long life
- Have space in centre point to insert foam
Specifications
| Manufacture Number | RCB-6316 |
| Material | PVC |
| Water Absorption | 0.15% Max (ASTM D-570) |
| Tear Resistance, lb/in. (kg/cm) | 300 (53.5) (ASTM D-624) |
| Specific Gravity ( /- 0.05) | 1.38 (ASTM D-792) |
| Hardness, Shore A ( /-5, 10 sec. delay) | 80 (D-2240) |
| Tensile, psi (kg/cm2) | 2,000 (140.6) (ASTM D-638, Type IV) |
| Elongation | 350% (ASTM D-638, Type IV) |
| Low Temperature | -35°F/-37°C (ASTM D-746) |
| Info and Guides | Product Data Sheet - RCB-6316 |
