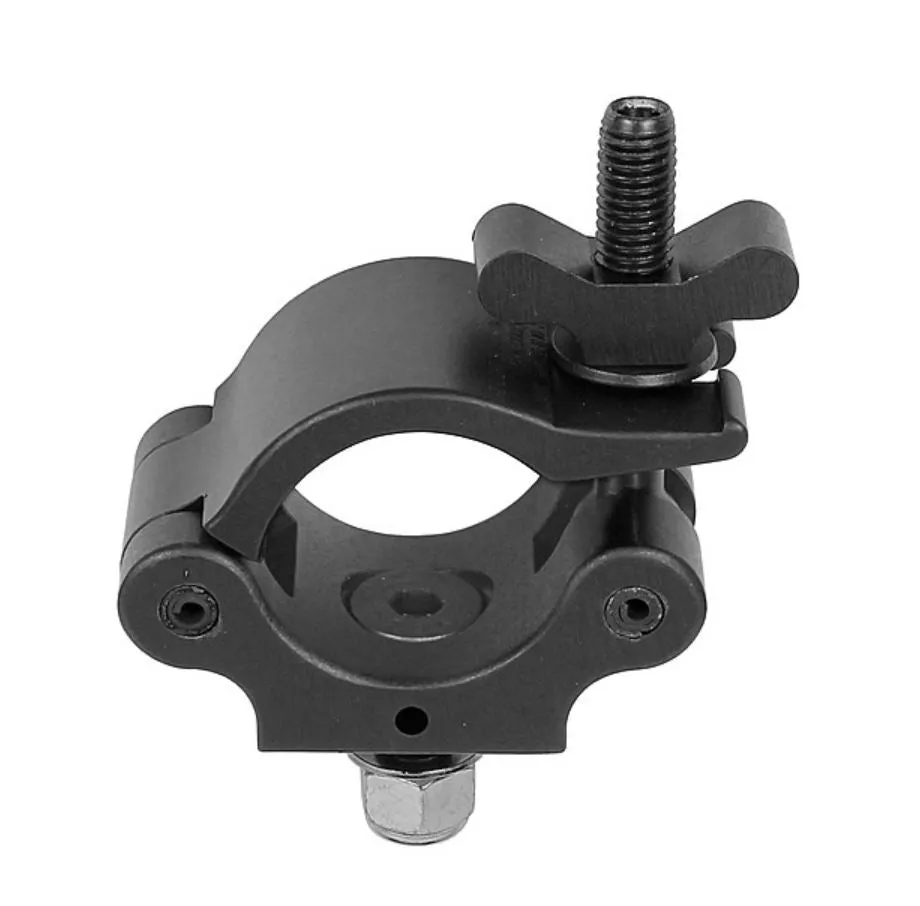

MLB1/2CS-SW Mega-Coupler 1/2 inch CS Bolt Black SW
ALL BULBS will beat "ALL" competitors pricing! ….... Call 516.766.2266
Replaces - MLB-SW
MLB1/2CS-SW Mega-Coupler 1/2 inch CS Bolt Black SW
The Countersunk Mega-Coupler replaces the standard hex head bolt with a flat head bolt.
The Countersunk Mega-Coupler comes with a 1/2" or 3/8" flat head base and comes standard with a heavy duty wing nut developed by The Light Source. Other nut options include a steel wing nut or a nylock nut.
For metric requirements, the M10 and M12 flat head bolt is available as well.
Download Spec Sheet (PDF)
- Minimum Size 1 1/4" pipe, 1.66OD truss tube
- Maximum Size 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Working Load Limit 1100 pounds
- Hardware 1/2″ × 1.5″ flat head bolt or 3/8″ × 1.5″ flat head bolt
Nylock Nut - Belleville Washer
- Weight 1.4 lbs. (MLM1/2CS-NN – 1.12 lbs.)
- Case Quantities 24
Order Codes
MLB-M10CS Mega-Coupler with Flat Head Bolt, M10 Metric Hardware, Black Anodized List: $36.36
MLB-M12CS Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Black Anodized List: $36.36
MLB1/2CS Mega-Coupler with 1/2" Flat Head Bolt, Black Anodized List: $34.43
MLB1/2CS-NN Mega-Coupler with 1/2" Flat Head Bolt, Nyloc Nut, Black Anodized List: $34.43
MLB1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, Black Anodized List: $63.06
MLB1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, Black Anodized List: $34.43
MLB3/8CS Mega-Coupler with 3/8" Flat Head Bolt, Black Anodized List: $34.43
MLM-M12CS Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Silver List: $30.24
MLM-M12CS-NN Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Nylock Nut, Silver List: $31.00
MLM1/2CS Mega-Coupler with 1/2" Flat Head Bolt, Silver List: $28.96
MLM1/2CS-NN Mega-Coupler with 1/2" Flat Head Bolt, Nylock Nut, Silver List: $28.96
MLM1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, Silver List: $57.91
MLM1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, Silver List: $28.96
MLM3/8CS Mega-Coupler with 3/8" Flat Head Bolt, Silver List: $28.96
MLW-1/2CS Mega-Coupler with 1/2" Flat Head Bolt, White Powder Coat List: $36.68
MLW-1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, White Powder Coat List: $65.64
MLW-1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, White Powder Coat List: $36.68
MLW3/8CS Mega-Coupler 3/8" Flat Head Bolt, White Powder Coat List: $37.00
MLW3/8CS MegCoupler with 3/8" Flat Head Bolt, White Powder Coat List: $37.00
MLW3/8CS-NN Mega-Coupler with 3/8" Flat Head Bolt, Nylock Nut, White Powder Coat List: $37.00
MLW3/8SS-NN Mega-Coupler with 3/8" Flat Head Bolt, Stainless Steel Hardware, Nylock Nut, White Powder Coat List: $66.9
